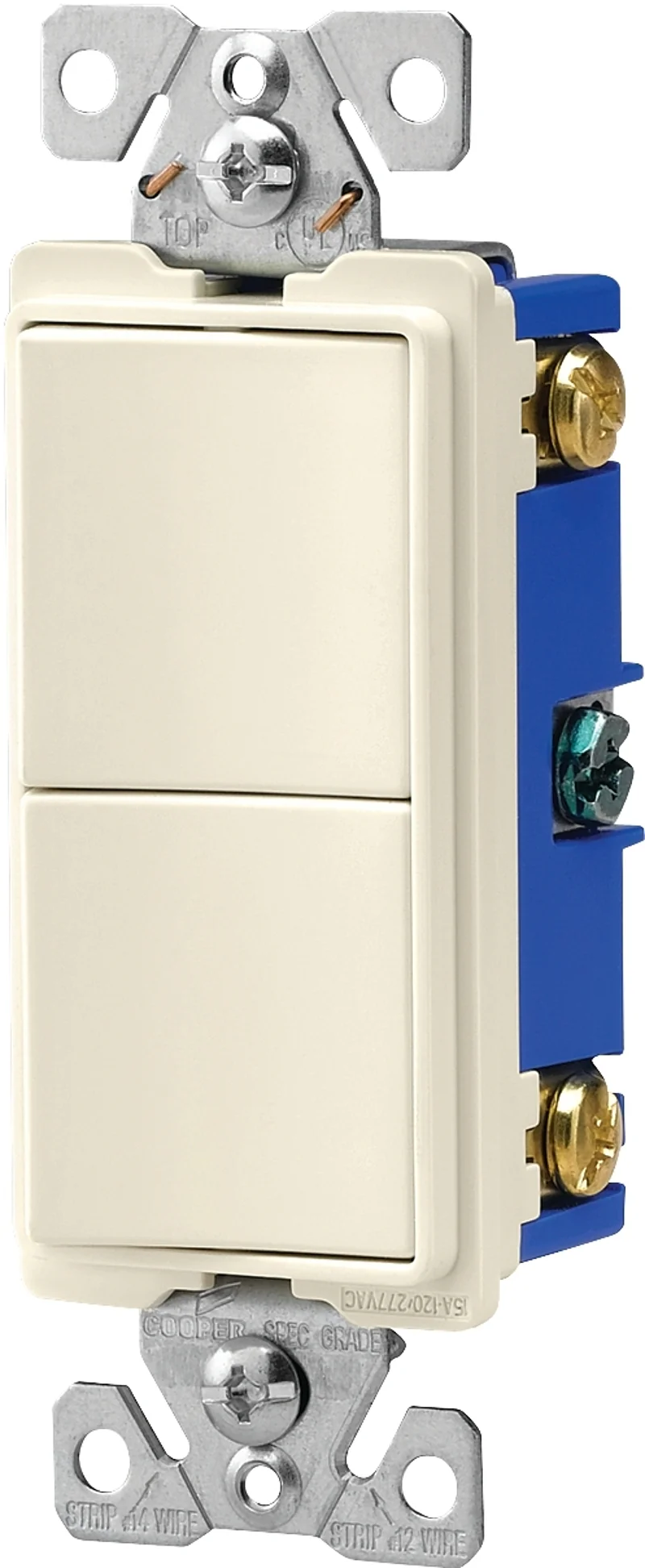

Eaton Wiring Devices 7700 Series 7728W-SP Combination Switch, 15 A, 120/277 V, SPST, Lead Wire Terminal, White
1 / 2
Eaton Wiring Devices 7700 Series 7728W-SP Combination Switch, 15 A, 120/277 V, SPST, Lead Wire Terminal, White
High-impact-resistant thermoplastic rocker, top and back body. Injection molded housings and PVC resin, comply with UL94 V0 flammability ratings. Tri-combo screw heads, built-in wire stripper. Backwire clamps on side terminals for installation of #12 and #14 wire. Terminal screws are backed out for easier and faster wiring. Thick (0.045 in/1.14 mm) steel mounting strap is zinc-plated. Automatic grounding system eliminates the need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where a jumper is used. 120/277 VAC, 15 A rocker switches with break-off provision for wiring both devices on the same circuit or on separate circuits. UL, cUL listed and NOM 426 rated.
Unit: EA
UPC: 032664664786
Model Number: 7728W-SP
Unit: EA
UPC: 032664664786
Model Number: 7728W-SP
$4.46
Original: $14.86
-70%Eaton Wiring Devices 7700 Series 7728W-SP Combination Switch, 15 A, 120/277 V, SPST, Lead Wire Terminal, White—
$14.86
$4.46Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
High-impact-resistant thermoplastic rocker, top and back body. Injection molded housings and PVC resin, comply with UL94 V0 flammability ratings. Tri-combo screw heads, built-in wire stripper. Backwire clamps on side terminals for installation of #12 and #14 wire. Terminal screws are backed out for easier and faster wiring. Thick (0.045 in/1.14 mm) steel mounting strap is zinc-plated. Automatic grounding system eliminates the need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where a jumper is used. 120/277 VAC, 15 A rocker switches with break-off provision for wiring both devices on the same circuit or on separate circuits. UL, cUL listed and NOM 426 rated.
Unit: EA
UPC: 032664664786
Model Number: 7728W-SP
Unit: EA
UPC: 032664664786
Model Number: 7728W-SP
